Richmond-Lynchburg-Roanoke coxial cable route

Updated: 04/11/2004 08:03PM EST

Comments:

Route installed in late 40s between 1945 and 1947. Has been supplanted by minor inter POP fiber routes coming out of Moseley. Instead of the relatively straight run of the old route, the current fiber optic facility seems to go south from Richmond 1 to Richmond 2 and then to Moseley where it heads west towards Lynchburg on route 60 dog legging north to Dillwyn. From Dillwyn the route goes down route 15 and then on route 60 west, past the Buckingham troposcatter and presumably to Lynchburg proper. The connection between Lynchburg and Roanoke (coaxial and fiber optic) is unkown. However, there seems to be an inter POP fiber optic route from AT&T's Roanoke POP to a realtively new AT&T POP in Blacksburg. It is thought that this new leg has replaced the coaxial branch from Roanoke to the regional Bell offices in Salem and Christiansburg.

Several of the optical regenerators along the new routes have been found but it is unknown if all of the K carrier huts have survived. Due to the rural path of the route it is assumed all are still standing.

Route facilities:

FacilitySite
Site ID:Richmond 1
Location:703 Grace St.
Richmond, VA
Picture Date:
Picture coming soon!
Site ID:RV K1W
Location:1700 Hugenout Springs Rd.
Chesterfield Co., VA
Picture Date:04/09/2004

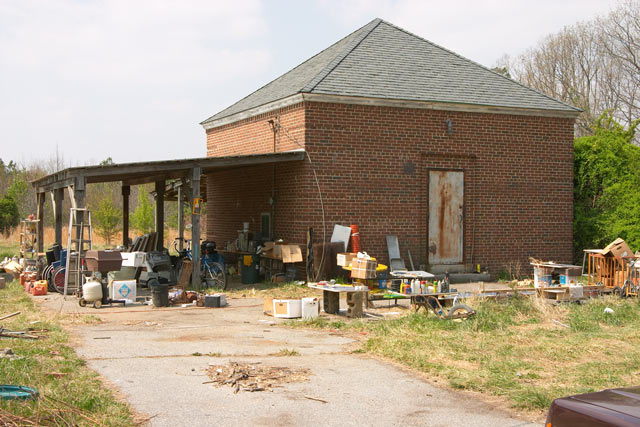

jpeg thumbnail of RV K1W repeater hut
Site ID:RV K2W
Location:5139 Old Buckingham Rd. (Rt. 13)
Belona, Powhatan Co., VA
Picture Date:04/09/2004

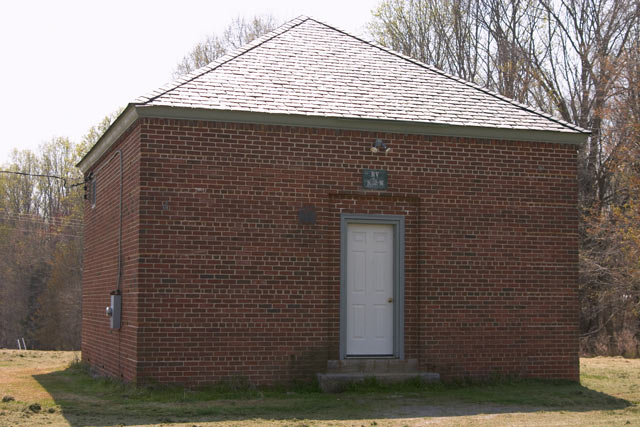

jpeg thumbnail of RV K2W repeater hut
Site ID:R.I.C. K3W
Location:3 mi W/O Cumberland Ch.
Cumberland Co., VA
Picture Date:
Site ID:L.Y.B.? K2E
Location:
, VA
Picture Date:
Site ID:L.Y.B.? K1E
Location:?
Appomattox Co.?, VA
Picture Date:
Hut ID:Lynchburg
Location:700 Church St.
Lynchburg, VA
Picture Date:
Site ID:L.Y.B KW
Location:?
Bedford Co.?, VA
Picture Date:
Site ID:L.Y.B.? KE
Location:off of Rt. 460 bypass
Bedford Co.?, VA
Picture Date:
Site ID:Roanoke
Location:Luck Ave.
Roanoke, VA
Picture Date:
Comments:Coaxial route branched to area C&P here, fiber now goes to Blackburg POP
Picture coming soon
